Single scroll gasket genuine part numbers

[Guest]

Pretty sure these suit anything up to V7. Pretty noob info but maybe helpful.

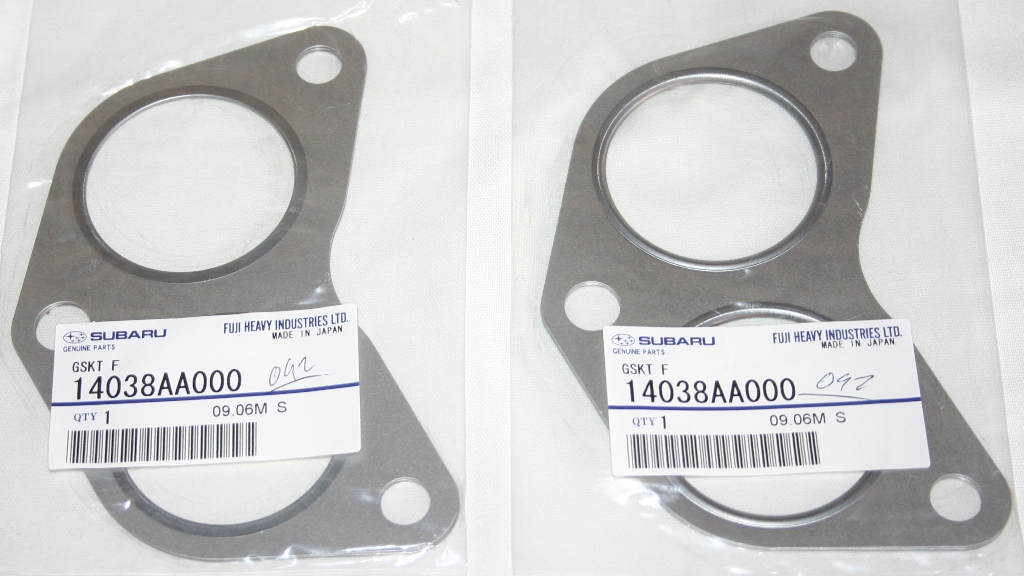

14038AA000 - Head to manifold gasket - 2 required

44022AA160 - Crosspipe gasket left/passenger side same as right side profile wise.

44011FA020 - Crosspipe gasket right/drivers side same as left side but has a piece sticking out for some odd reason.

44022AA170 - Manifold to uppipe gasket.

44022AA150 - Turbo inlet gasket.

44022AA180 - Turbo outlet gasket.

TWIN SCROLL GASKETS TO SUIT VF36/37

14038AA000 - Head to mani

44011FE040 - Up pipe to turbo

44011FE050 - Turbo to dump pipe

44011FE030 - Mani to up pipe

[Rosssub]

Very nice, thank you Kind Sir. ;D

[Rosssub]

Have you got the OEM Twin Scroll, Turbo Gasket Part Numbers? (Version 8 STI VF36)

[Guest]

Nope but wack em up when you find them and ill add pics to first post. Try build up a list.

[Rosssub]

 evowrx said:

Nope but wack em up when you find them and ill add pics to first post. Try build up a list.

Done. ;D

Edit:

Up Pipe Gasket - 44011FE040

Down Pipe Gasket - 44011FE050

[Guest]

Taking a punt on the VF38 taking the same head to mani and mani to up pipe gaskets but different turbo inlet/outlet gaskets?

[Rosssub]

 evowrx said:

Taking a punt on the VF38 taking the same head to mani and mani to up pipe gaskets but different turbo inlet/outlet gaskets?

Yip, I\'ve had no luck finding Numbers yet though.

[Rosssub]

Ouch...Genuine through Subaru, for VF36/VF37 Twin Scroll:

UP Flange Gasket - 44011FE040 - $59.00 + GST Each

DP Flange Gasket - 44011FE050 - $65.00 + GST Each

Exhaust Manifold - 14038AA000 - $16.00 + GST Each

Edited March 16, 2015 by Rosssub

[Rosssub]

 Rosssub said:

Ouch...Genuine through Subaru, for VF38 Twin Scroll:

UP Flange Gasket - 44011FE040 - $59.00 + GST Each

DP Flange Gasket - 44011FE050 - $65.00 + GST Each

Exhaust Manifold - 14038AA000 - $16.00 + GST Each

;D

Partsouq.com

UP Flange gasket - 44011FE040 - $13.77

DP Flange Gasket - 44011FE050 - $15.77

Exhaust Manifold - 14038AA000 - $3.60

https://partsouq.com/en/search/search?q=44011FE050

I just brought a full set, with a new OEM 10mm Oil Pump, for $185nzd delivered.

Lets see how delivery is... ;D

[Rosssub]

 Rosssub']

[quote name='Rosssub said:

Ouch...Genuine through Subaru, for VF36 Twin Scroll:

UP Flange Gasket - 44011FE040 - $59.00 + GST Each

DP Flange Gasket - 44011FE050 - $65.00 + GST Each

Exhaust Manifold - 14038AA000 - $16.00 + GST Each

/quote]

;D

Partsouq.com

UP Flange gasket - 44011FE040 - $13.77

DP Flange Gasket - 44011FE050 - $15.77

Exhaust Manifold - 14038AA000 - $3.60

https://partsouq.com/en/search/search?q=44011FE050

I just brought a full set, with a new OEM 10mm Oil Pump, for $185nzd delivered.

Lets see how delivery is... ;D

8 working days from partsouq:

[slystiguy]

Many thanks for the link Rossub! I need some many seals done! Crank/rocker cover/inlet/turbos. This is going to save me soooooo much $$$$$

Now to find a parts list for a facelift BC legacy...

[Rosssub]

Sweet, Leighos pointed partsouq out in another thread. Can\'t beat those prices. ;D

Edit: Find someone else keen and go halves in the freight.

[slystiguy]

The only thing I guess is going to be duty tax or what ever if you get to expensive.

[Leighos]

 slystiguy said:

The only thing I guess is going to be duty tax or what ever if you get to expensive.

You\'ll be all good if you keep it under $300US, besides you can always devalue it on checkout if you need to Happy shopping.

[A_J_T]

Chur, very helpful thank you.

Also found this on NASIOC, helped my mental picture a bit.
